ChironChart

Chiron Chart

Use this .NET Usercontrol (WinForms , WinUI, MAUI) to draw 2D charts including legend, zooming, shifting,...

Available from NuGet:

winForms WinUI MAUI

Donation

Send us an email if you need help or have some suggestions:

t.office@gmx.net

If you want to support our developement, you can donate here:

Example (WinForms)


This is the small source code behind:

Example1_LineChartForm.cs


using ChironChart.Helper;
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Runtime.ConstrainedExecution;
using System.Text;
using System.Windows.Forms;

namespace WfChart_Test
{
    public partial class Form1 : Form
    {
        List lineData = new List();
        List barData = new List();
        public Form1()
        {
            InitializeComponent();
        }

        private void Form1_Load(object sender, EventArgs e)
        {
            simpleChart1.Refresh();
            simpleChart1.chartZoomChangedEvent += SimpleChart1_chartZoomChangedEvent;
        }

        private void SimpleChart1_chartZoomChangedEvent(double xMin, double xMax, double yMin, double yMax)
        {

        }

        double gauss(double x, double a, double b, double c)
        {
            var v1 = (x - b);
            var v2 = (v1 * v1) / (2 * (c * c));
            var v3 = a * Math.Exp(-v2);
            return v3;
        }

        private void buttonFillData_Click(object sender, EventArgs e)
        {
            ChiChart_Scale xScale = new ChiChart_Scale()
            {
                mode = ChiChart_ScaleMode.Time,
                sUnit = "",
                StartTime = DateTime.Now,
                sTimeFormat = "dd.MM.yyyy HH:mm:ss.fff"
            };


            simpleChart1.setXScaleMode(xScale);

            simpleChart1.clearPlots();

            int num = 100;
            float delta = 100.0f / ((float)num);
            PointF[] plot1 = new PointF[num];
            PointF[] plot2 = new PointF[num];
            PointF[] plot3 = new PointF[num];
            PointF[] plot4 = new PointF[num];

            for (int i = 0; i < num; i++)
            {
                plot1[i] = new PointF(i * delta, (float)gauss(i * delta, 33, 57, 4));
                plot2[i] = new PointF(i * delta, (float)gauss(i * delta, 100, 45, 4));
                plot3[i] = new PointF(i * delta, (float)gauss(i * delta, 44, 70, 4));
                plot4[i] = new PointF(i * delta, (float)gauss(i * delta, 55, 65, 4));
            }

            simpleChart1.addPlot(new ChiChart_Plot("Myplot1", Color.Red, plot1));
            simpleChart1.addPlot(new ChiChart_Plot("Myplot2", Color.Blue, plot2, ChiChart_LineStyle.LineDown, ChiChart_PointStyle.None));
            simpleChart1.addPlot(new ChiChart_Plot("Myplot3", Color.Green, plot3, ChiChart_LineStyle.LineDown, ChiChart_PointStyle.None, 3));
            simpleChart1.addPlot(new ChiChart_Plot("Myplot4", Color.Purple, plot4, ChiChart_LineStyle.Line, ChiChart_PointStyle.Circle));

            //cursors
            simpleChart1.clearCursors();
            simpleChart1.addCursor(new ChiChart_Cursor(30, false, Color.Red, 2, true, 0));
            numCursor1.Value = new decimal(30);
            simpleChart1.addCursor(new ChiChart_Cursor(84, false, Color.Blue, 2, true, 1));

            simpleChart1.setXRange(-11, num * 0.1);
            simpleChart1.setYRange(-11, 120);
            simpleChart1.Refresh();
            simpleChart1.draw();


        }

        private void buttonAppendData_Click(object sender, EventArgs e)
        {
            int num = 100;
            float delta = 100.0f / ((float)num);
            List appendData = new List();
            var data = simpleChart1.getData();
            if (data.Count < 1)
                return;
            var lastPoint = data[0][data[0].Length-1];

            appendData.Add(new PointF(lastPoint.X + 1, 11));
            appendData.Add(new PointF(lastPoint.X + 1, 22));
            appendData.Add(new PointF(lastPoint.X + 1, 33));
            appendData.Add(new PointF(lastPoint.X + 1, 44));

            simpleChart1.appendData(appendData);

            simpleChart1.Refresh();
            simpleChart1.draw();
        }
        private void checkBox_ShowLegend_CheckedChanged(object sender, EventArgs e)
        {
            simpleChart1.setShowLegend(checkBox_ShowLegend.Checked);
            simpleChart1.Refresh();
            simpleChart1.draw();
        }

        private void cb_selectViewMode_SelectedIndexChanged(object sender, EventArgs e)
        {
            if (cb_selectViewMode.Text == "Line")
            {
                simpleChart1.setViewMode(ViewMode.Line);
            }
            if (cb_selectViewMode.Text == "Bar")
            {
                simpleChart1.setViewMode(ViewMode.Bar);
            }
            simpleChart1.Refresh();
        }

        private void cb_changeColor_SelectedIndexChanged(object sender, EventArgs e)
        {
            if (cb_changeColor.Text=="White") {
                simpleChart1.setBackgroundColor(Color.GhostWhite);
                simpleChart1.setAxisColor(Color.Black);
                simpleChart1.setGridColor(Color.Gray);
            }
            if (cb_changeColor.Text == "Black")
            {
                simpleChart1.setBackgroundColor(Color.Black);
                simpleChart1.setAxisColor(Color.White);
                simpleChart1.setGridColor(Color.Gray);
            }
            simpleChart1.Refresh();
        }

        private void checkBox_CheckedChanged(object sender, EventArgs e)
        {
            simpleChart1.setShowGridHor(checkBox_ShowGrid.Checked);
            simpleChart1.Refresh();

        }

        private void checkBoxTools_CheckedChanged(object sender, EventArgs e)
        {
            simpleChart1.setShowTools(checkBoxTools.Checked);
            simpleChart1.Refresh();
        }

        private void checkBoxLog_CheckedChanged(object sender, EventArgs e)
        {
            simpleChart1.setYScaleLog(checkBoxLog.Checked);
            simpleChart1.Refresh();
        }

        private void simpleChart1_cursorMovedEvent(object sender, int index, ChiChart_Cursor cur)
        {
            switch (cur.index)
            {
                case 0:
                    //cursor 1
                    numCursor1.Value = new decimal(cur.dPos);
                    break;
                case 1:
                    //cursor 2
                    break;
                default:
                    break;
            }
        }

        private void numCursor1_ValueChanged(object sender, EventArgs e)
        {
            var curs = simpleChart1.GetCursors();
            if (curs.Count < 1)
                return;

            curs[0].dPos = Convert.ToDouble(numCursor1.Value);
            simpleChart1.SetCursors(curs);
            simpleChart1.Refresh();
            simpleChart1.draw();
        }


    }
}

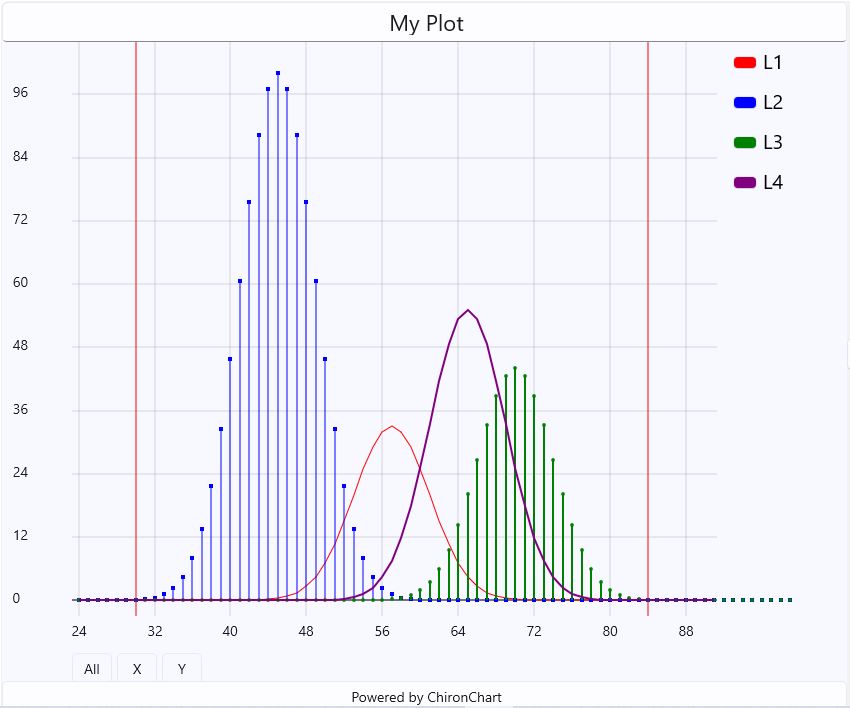

Example (WINUI)


Source Code (with MVVM binding)

MainWindow.xaml


MainWindow.xaml.cs

	using Microsoft.UI.Xaml;
	using Microsoft.UI.Xaml.Controls;
	using Microsoft.UI.Xaml.Controls.Primitives;
	using Microsoft.UI.Xaml.Data;
	using Microsoft.UI.Xaml.Input;
	using Microsoft.UI.Xaml.Media;
	using Microsoft.UI.Xaml.Navigation;
	using System;
	using System.Collections.Generic;
	using System.IO;
	using System.Linq;
	using System.Runtime.InteropServices.WindowsRuntime;
	using Windows.Foundation;
	using Windows.Foundation.Collections;
	using CommunityToolkit.Mvvm.DependencyInjection;

	// To learn more about WinUI, the WinUI project structure,
	// and more about our project templates, see: http://aka.ms/winui-project-info.

	namespace ChironTestWinui
	{
		///
		/// An empty window that can be used on its own or navigated to within a Frame.
		///
		public sealed partial class MainWindow : Window
		{
			public MainViewModel ViewModel { get; }
			public MainWindow()
			{
				ViewModel = new MainViewModel();
				this.InitializeComponent();
				myChart.cursorMovedEvent += MyChart_cursorMovedEvent;
			}

			private void MyChart_cursorMovedEvent(object sender, int index, ChironChartWinUI_CS.Helper.ChiChart_Cursor cur)
			{
				ViewModel.cursorMoved(cur);
			}

			private void myButton_Click(object sender, RoutedEventArgs e)
			{
				myButton.Content = "Clicked";
			}


		}
	}


MainViewModel.cs

using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Input;
using ChironChartWinUI_CS.Controls;
using ChironChartWinUI_CS.Helper;
using CommunityToolkit.Mvvm.ComponentModel;
using CommunityToolkit.Mvvm.Input;
using Microsoft.UI;

namespace ChironTestWinui
{
    public class MainViewModel : ObservableRecipient
    {
        private double xScaleMin;
        public double XScaleMin
        {
            get { return xScaleMin; }
            set
            {
                xScaleMin = value;
                OnPropertyChanged(nameof(XScaleMin));
            }
        }

        private double xScaleMax;
        public double XScaleMax
        {
            get { return xScaleMax; }
            set
            {
                xScaleMax = value;
                OnPropertyChanged(nameof(XScaleMax));
            }
        }

        private ObservableCollection plots;
        public ObservableCollection Plots
        {
            get { return plots; }
            set
            {
                plots = value;
                OnPropertyChanged(nameof(Plots));
            }
        }

        private ObservableCollection _cursors;
        public ObservableCollection Cursors
        {
            get { return _cursors; }
            set
            {
                _cursors = value;
                OnPropertyChanged(nameof(Cursors));
            }
        }

        private string curPos;
        public string CurPos
        {
            get { return curPos; }
            set
            {
                curPos = value;
                OnPropertyChanged(nameof(CurPos));
            }
        }

        //private ChiChart_Cursor selectedCursor;
        //public ChiChart_Cursor SelectedCursor
        //{
        //    get { return selectedCursor; }
        //    set
        //    {
        //        selectedCursor = value;
        //        OnPropertyChanged(nameof(SelectedCursor));
        //    }
        //}

        public MainViewModel()
        {
            XScaleMin = 10;
            XScaleMax = 90;
            //SelectedCursor = new ChiChart_Cursor();
        }

        public void cursorMoved(ChiChart_Cursor cur)
        {

        }

        double gauss(double x, double a, double b, double c)
        {
            var v1 = (x - b);
            var v2 = (v1 * v1) / (2 * (c * c));
            var v3 = a * Math.Exp(-v2);
            return v3;
        }

        private ICommand dataCommand;
        public ICommand DataCommand => dataCommand ?? (dataCommand = new AsyncRelayCommand(DataCommandAction));

        private async Task DataCommandAction()
        {
            float num = 100;
            ObservableCollection plots = new ObservableCollection();

            //SolidColorBrush lineBrush = new SolidColorBrush(Colors.Red);
            myLineSerie ser1 = new myLineSerie("L1", Colors.Red, ChiChart_LineStyle.Line, ChiChart_PointStyle.None);

            myLineSerie ser2 = new myLineSerie("L2", Colors.Blue, ChiChart_LineStyle.LineDown, ChiChart_PointStyle.Square);

            myLineSerie ser3 = new myLineSerie("L3", Colors.Green, ChiChart_LineStyle.LineDown, ChiChart_PointStyle.Circle, 2);

            myLineSerie ser4 = new myLineSerie("L4", Colors.Purple, ChiChart_LineStyle.Line, ChiChart_PointStyle.None, 2);
            float delta = 100.0f / num;
            for (int i = 0; i < num; i++)
            {
                ser1.points.Add(new myPoint(i * delta, (float)gauss(i * delta, 33, 57, 4)));
                ser2.points.Add(new myPoint(i * delta, (float)gauss(i * delta, 100, 45, 4)));
                ser3.points.Add(new myPoint(i * delta, (float)gauss(i * delta, 44, 70, 4)));
                ser4.points.Add(new myPoint(i * delta, (float)gauss(i * delta, 55, 65, 4)));
            }

            plots.Add(ser1);
            plots.Add(ser2);
            plots.Add(ser3);
            plots.Add(ser4);



            //cursors:
            ObservableCollection myCursors = new ObservableCollection();
            myCursors.Add(new ChiChart_Cursor(30, false, Colors.Red,2,true,0));
            myCursors.Add(new ChiChart_Cursor(84, false, Colors.Blue,2,true,1));
            //myChart.Cursors = myCursors;

            Plots = plots;
            Cursors = myCursors;
        }
    }
}




Example (MAUI)


Source Code (with MVVM binding)

MainPage.xaml


MainViewModel.cs

using ChironChartMaui;
using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.ComponentModel;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Input;

namespace ChironChartMaui_Test
{
    public class MainViewModel : INotifyPropertyChanged
    {
        public MainViewModel()
        {
            XMinInfo = "1";
            XMaxInfo = "3";
            YMinInfo = "1";
            YMaxInfo = "2";

            ButtClickCommand = new Command(
            execute: () =>
            {
                ((Command)ButtClickCommand).ChangeCanExecute();

                plotData();
            },
            canExecute: () => true);
        }

        public event PropertyChangedEventHandler PropertyChanged;

        public ICommand ButtClickCommand { get; private set; }

        string xMinInfo;
        public string XMinInfo
        {
            get
            {
                return xMinInfo;
            }
            private set
            {
                if (xMinInfo != value)
                {
                    xMinInfo = value;
                    PropertyChanged?.Invoke(this, new PropertyChangedEventArgs("XMinInfo"));
                    XMin = Convert.ToDouble(value);
                }
            }
        }

        string xMaxInfo;
        public string XMaxInfo
        {
            get
            {
                return xMaxInfo;
            }
            private set
            {
                if (xMaxInfo != value)
                {
                    xMaxInfo = value;
                    PropertyChanged?.Invoke(this, new PropertyChangedEventArgs("XMaxInfo"));
                    XMax = Convert.ToDouble(value);
                }
            }
        }

        string yMinInfo;
        public string YMinInfo
        {
            get
            {
                return yMinInfo;
            }
            private set
            {
                if (yMinInfo != value)
                {
                    yMinInfo = value;
                    PropertyChanged?.Invoke(this, new PropertyChangedEventArgs("YMinInfo"));
                    YMin = Convert.ToDouble(value);
                }
            }
        }

        string yMaxInfo;
        public string YMaxInfo
        {
            get
            {
                return yMaxInfo;
            }
            private set
            {
                if (yMaxInfo != value)
                {
                    yMaxInfo = value;
                    PropertyChanged?.Invoke(this, new PropertyChangedEventArgs("YMaxInfo"));
                    YMax = Convert.ToDouble(value);
                }
            }
        }

        double xMin;
        public double XMin
        {
            get
            {
                return xMin;
            }
            private set
            {
                if (xMin != value)
                {
                    xMin = value;
                    PropertyChanged?.Invoke(this, new PropertyChangedEventArgs("XMin"));
                }
            }
        }

        double xMax;
        public double XMax
        {
            get
            {
                return xMax;
            }
            private set
            {
                if (xMax != value)
                {
                    xMax = value;
                    PropertyChanged?.Invoke(this, new PropertyChangedEventArgs("XMax"));
                }
            }
        }

        double yMin;
        public double YMin
        {
            get
            {
                return yMin;
            }
            private set
            {
                if (yMin != value)
                {
                    yMin = value;
                    PropertyChanged?.Invoke(this, new PropertyChangedEventArgs("YMin"));
                }
            }
        }

        double yMax;
        public double YMax
        {
            get
            {
                return yMax;
            }
            private set
            {
                if (yMax != value)
                {
                    yMax = value;
                    PropertyChanged?.Invoke(this, new PropertyChangedEventArgs("YMax"));
                }
            }
        }

        ObservableCollection plots;
        public ObservableCollection Plots
        {
            get
            {
                return plots;
            }
            private set
            {
                if (plots != value)
                {
                    plots = value;
                    PropertyChanged?.Invoke(this, new PropertyChangedEventArgs("Plots"));
                }
            }
        }

		ObservableCollection cursors;
        public ObservableCollection Cursors
        {
            get
            {
                return cursors;
            }
            private set
            {
                if (cursors != value)
                {
                    cursors = value;
                    PropertyChanged?.Invoke(this, new PropertyChangedEventArgs("Cursors"));
                }
            }
        }

        double gauss(double x, double a, double b, double c)
        {
            var v1 = (x - b);
            var v2 = (v1 * v1) / (2 * (c * c));
            var v3 = a * Math.Exp(-v2);
            return v3;
        }

        void plotData()
        {
            int num = 100;
            ObservableCollection plots = new ObservableCollection();

            //SolidColorBrush lineBrush = new SolidColorBrush(Colors.Red);
            ChiChart_LineSerie ser1 = new ChiChart_LineSerie("L1", Colors.Red, ChiChart_LineStyle.Line, ChiChart_PointStyle.None);

            ChiChart_LineSerie ser2 = new ChiChart_LineSerie("L2", Colors.Blue, ChiChart_LineStyle.LineDown, ChiChart_PointStyle.Square);

            ChiChart_LineSerie ser3 = new ChiChart_LineSerie("L3", Colors.Green, ChiChart_LineStyle.LineDown, ChiChart_PointStyle.Circle, 2);

            ChiChart_LineSerie ser4 = new ChiChart_LineSerie("L4", Colors.Purple, ChiChart_LineStyle.Line, ChiChart_PointStyle.None, 2);

            float delta = 100.0f / num;
            for (int i = 0; i < num; i++)
            {
                ser1.points.Add(new ChiChart_Point(i * delta, (float)gauss(i * delta, 33, 57, 4)));
                ser2.points.Add(new ChiChart_Point(i * delta, (float)gauss(i * delta, 100, 45, 4)));
                ser3.points.Add(new ChiChart_Point(i * delta, (float)gauss(i * delta, 44, 70, 4)));
                ser4.points.Add(new ChiChart_Point(i * delta, (float)gauss(i * delta, 55, 65, 4)));
            }

            plots.Add(ser1);
            plots.Add(ser2);
            plots.Add(ser3);
            plots.Add(ser4);



            //cursors:
            ObservableCollection myCursors = new ObservableCollection();
            myCursors.Add(new ChiChart_Cursor(30, false, Colors.Red));
            myCursors.Add(new ChiChart_Cursor(84, false, Colors.Red));
            //myChart.Cursors = myCursors;

            Plots = plots;
            Cursors = myCursors;
        }
    }
}
